Description

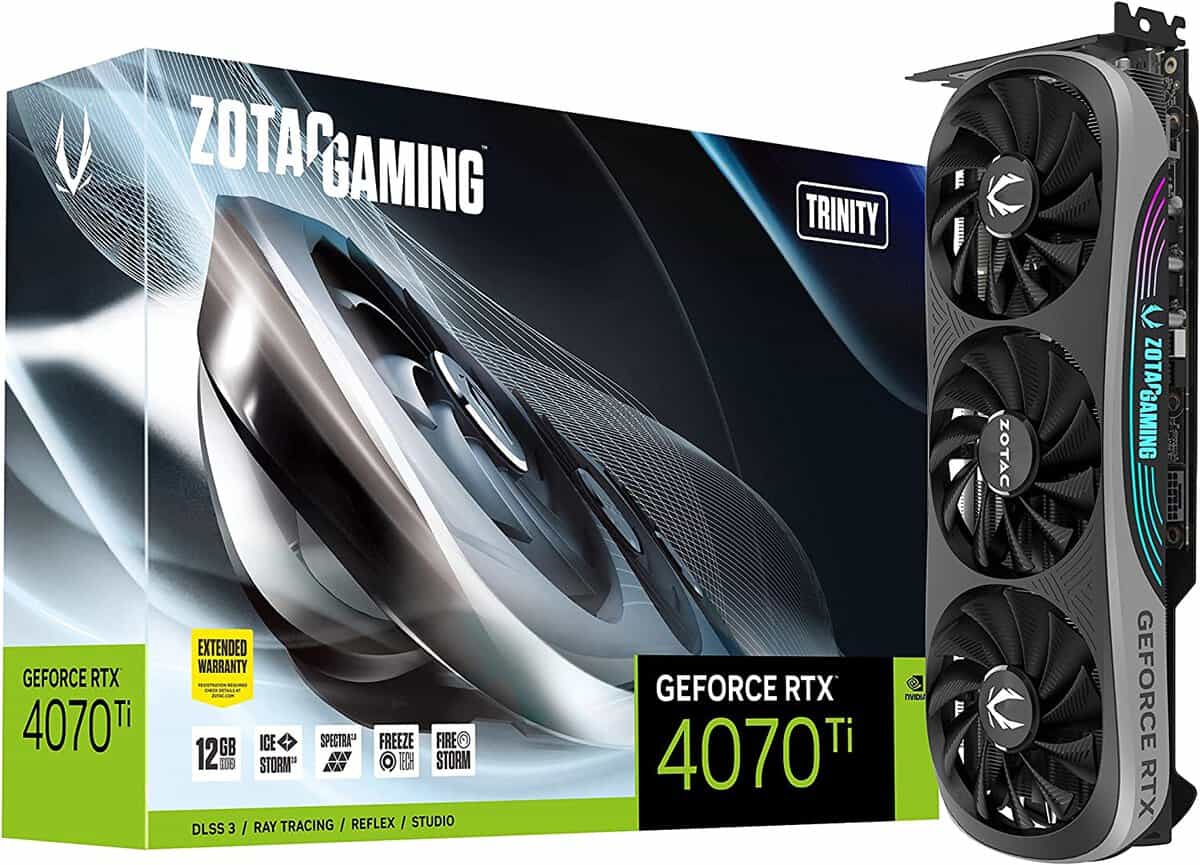

ZOTAC GAMING GeForce RTX 4070 Ti Trinity Graphics Card

Leveraging an all-new aerodynamic inspired design, the ZOTAC GAMING GeForce RTX 4070 Ti Trinity utilizes the world’s most advanced gaming GPU powered by the NVIDIA Ada Lovelace architecture and DLSS 3. Using cutting-edge cooling technologies derived from the flagship model, Trinity packs the punch to offer gamers the needed blistering FPS in the latest titles.

FEATURES

1. NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency • 4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering • 3rd Generation RT Cores: Up to 2X ray tracing performance
2. NVIDIA DLSS 3
3. Game Ready and NVIDIA Studio Drivers
4. NVIDIA GeForce Experience
5. NVIDIA Broadcast, NVIDIA G-SYNC
6. NVIDIA GPU Boost
7. 12GB GDDR6X Graphics Memory
8. IceStorm 2.0 Advanced Cooling
9. FREEZE Fan Stop, Active Fan Control
10. SPECTRA 2.0 RGB Lighting
11. Metal Backplate
12. ZOTAC GAMING FireStorm Utility

SPECIFICATIONS

1. NVIDIA GeForce RTX 4070 Ti GPU 7680 CUDA cores
2. 12GB GDDR6X memory
3. 192-bit memory bus
4. Engine boost clock: 2625 MHz
5. Memory clock: 21 Gbps
6. PCI Express 4.0 16x

SOFTWARE COMPATIBILITY

1. Game Ready and NVIDIA Studio Drivers
2. PCI Express Gen 4
3. Microsoft DirectX 12 Ultimate
4. Vulkan RT APIs, Vulkan 1.3
5. OpenGL 4.6
6. Windows 11 / 10 (64-bit, v1809 November 2018 or later)

CONNECTIONS

1. 3 x DisplayPort 1.4a (up to 7680×4320@60Hz)
2. 1 x HDMI Connector (Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1 Specification)
3. HDCP 2.3 support
4. Quad simultaneous display capable POWER REQUIREMENTS
5. 750-watt power supply recommended
6. 285-watt max power consumption
7. 1 x 12VHPWR power input INSIDE THE BOX
8. ZOTAC GAMING GeForce RTX 4070 Ti Trinity OC
9. GPU Support Stand
10. 3x 8-pin-to-12VHPWR cable
11. User Manual

DIMENSIONS Product: • Length: 306.8mm (12.1in) • Height: 119.4mm (4.7in) • Width: 2.5 slot (58.5mm) (2.3in) Box: • Height: 424mm (16.7in) • Width: 292mm (11.5in) • Depth: 99mm (3.9in)

Feature Highlights:

1. Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
2. Strong Performance
3.  IceStorm 2.0 Advanced Cooling
4. FREEZE Fan Stop, Active Fan Control
5. SPECTRA 2.0 RGB Lighting
6. Metal Backplate
7. Bundled with GPU Support Bracket
8. All-new FireStorm Utility
