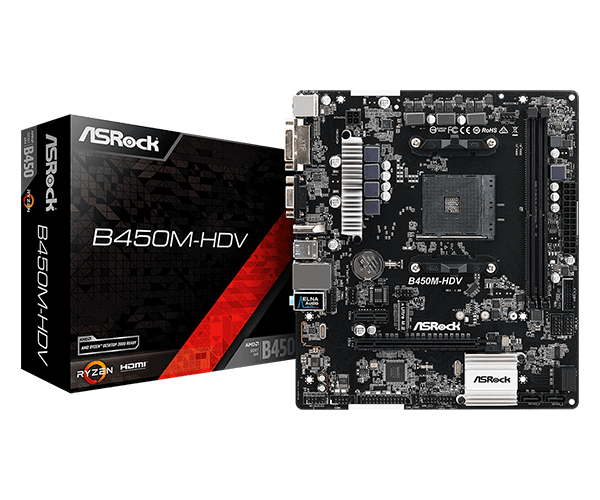

ASRock B450M-HDV R4.0 Micro ATX AMD Motherboard

ASRock B450M-HDV R4.0: Micro ATX Powerhouse for Ryzen Processors

The ASRock B450M-HDV R4.0 is a Micro ATX AMD motherboard designed to harness the power of AMD’s Ryzen processors. Delivering a versatile and reliable platform for budget-conscious users and entry-level gamers. Here’s a closer look at the features that make this motherboard stand out:

CPU Support:

1. Socket AM4: The B450M-HDV R4.0 features a Socket AM4. Supporting a wide range of AMD processors, including Ryzen 2000, 3000, 4000 G-Series, 5000, and 5000 G-Series Desktop Processors.
2. 6-Power Phase Design: The motherboard supports CPUs with a thermal design power (TDP) of up to 105W. Stable power delivery for high-performance processors.

Chipset and Expansion Slots:

1. AMD Promontory B450: The motherboard is built on the AMD Promontory B450 chipset. A reliable foundation for AMD Ryzen processors.
2. Expansion Slots: It offers 1 PCIe 3.0 x16 slot and 1 PCIe 2.0 x1 slot, catering to your expansion needs and supporting various add-on cards.

Audio and LAN:

1. Audio: Equipped with Realtek ALC887 7.1-Channel High Definition Audio CODEC, delivering immersive audio experiences for gaming and multimedia.
2. LAN: Realtek RTL8111H PCIe x1 Gigabit Ethernet Controller ensures fast and reliable network connectivity.

Memory and Graphics Outputs:

1. Memory Support: The motherboard supports dual-channel memory with 2 DIMMs, accommodating DDR4 3200+(OC)* memory modules. *Actual support may vary by CPU.
2. Graphics Outputs: It provides multiple graphics output options, including HDMI, DVI-D, and D-Sub, supporting Triple Monitor configurations.

Ultra M.2 for Fast Data Transfer:

1. PCIe Gen3 x4 Ultra M.2: The Ultra M.2 interface supports data transfer speeds of up to 32Gb/s, compatible with both PCIe Gen3 x4 and SATA3 M.2 modules. ASRock’s U.2 Kit allows the installation of some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.

AMD StoreMI Technology:

1. Intelligent Storage Solution: AMD StoreMI Technology combines the speed of SSDs with the capacity of HDDs, creating a single, fast, and easy-to-manage drive. It automatically moves frequently accessed data to the SSD for optimal performance.

High-Quality Components:

1. High-Density Glass Fabric PCB: The design minimizes gaps between PCB layers, protecting the motherboard against electrical shorts caused by humidity.
2. Sapphire Black PCB: The stylish pure black appearance of the Sapphire Black PCB represents rock-solid quality.

Triple Monitor and 4K Support:

1. Triple Monitor Support: Enjoy the luxury of connecting up to three displays simultaneously without the need for an additional graphics card (supported with processors with integrated graphics only).
2. 4K x 2K Resolution: The motherboard supports 4K x 2K resolution, offering a visually stunning experience.

Stability and Longevity:

1. Solid Capacitor Design: ASRock incorporates solid capacitors on the motherboard, enhancing stability and ensuring a longer lifetime.
2. Digi Power: The next-generation Hybrid Digi Power design provides precise control and clean power delivery to the CPU, enhancing overall motherboard stability and lifespan.

A-Tuning Software and Full Spike Protection:

1. A-Tuning: ASRock’s multi-purpose software suite, A-Tuning, comes with a new interface, additional features, and improved utilities for system optimization.
2. Full Spike Protection: Guard sensitive digital components against unexpected voltage spikes, ensuring the longevity and reliability of your system.

Live Update & APP Shop:

1. Convenient System Optimization: ASRock Live Update & APP Shop offers various apps and support software for users to download. Easily optimize your system and keep your motherboard up to date with this user-friendly tool.

In conclusion, the ASRock B450M-HDV R4.0 is a feature-packed Micro ATX motherboard that provides a solid foundation for AMD Ryzen processors. With its versatile connectivity options, support for high-speed storage solutions, and stability-enhancing features, this motherboard is an excellent choice for users seeking reliable performance on a budget. Elevate your computing experience with the ASRock B450M-HDV R4.0.
